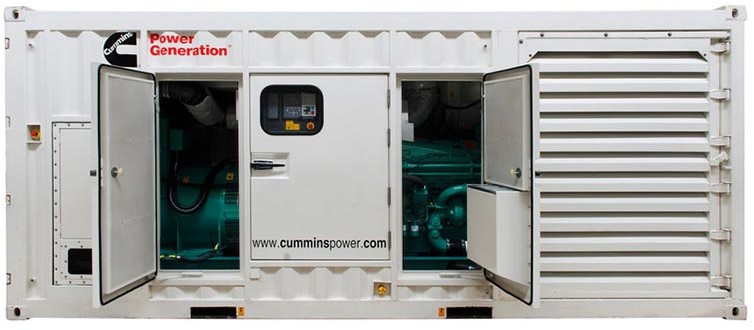

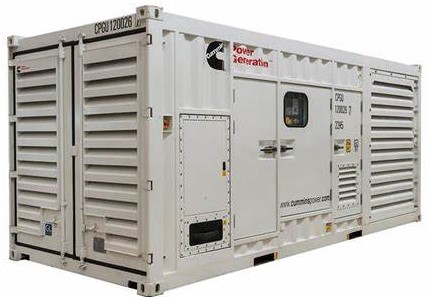

GENERATOR
Diesel powered
All equipment is dual frequency capable -50Hz or 60Hz
Purpose-built for rental application in harsh environment
Suitable for use in high or low ambient temperatures
Sound attenuated enclosures
Save all containment base – prevents spillage of fluids or fuel and eliminates need
for temporary bunds
发电机组
柴油驱动
所有设备均可双频率运行（50赫兹或60赫兹）
专为恶劣环境下的租赁应用而设计和建造，适用于任何复杂场景
可用于高或低环境温度场合（配备加强型散热器和加热器）
消声降噪型结构外壳
防溢流密封底座设计（防止液体或燃料的溢出，并可根据需要临时解除密封）
GENERATORS CONTROL

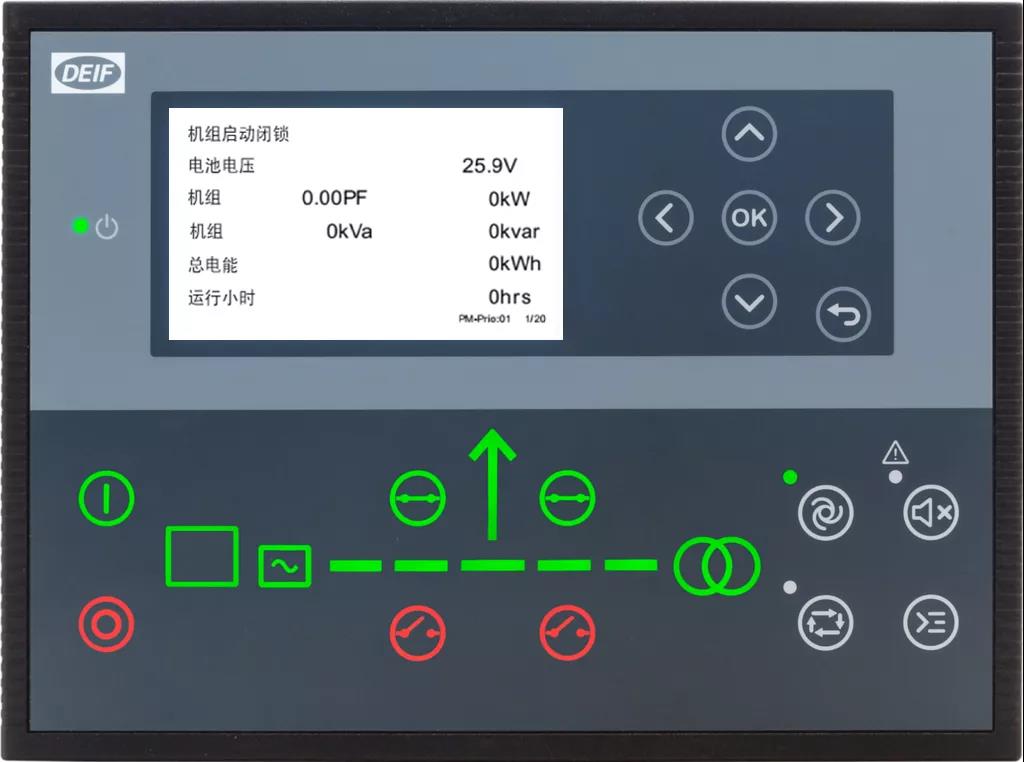

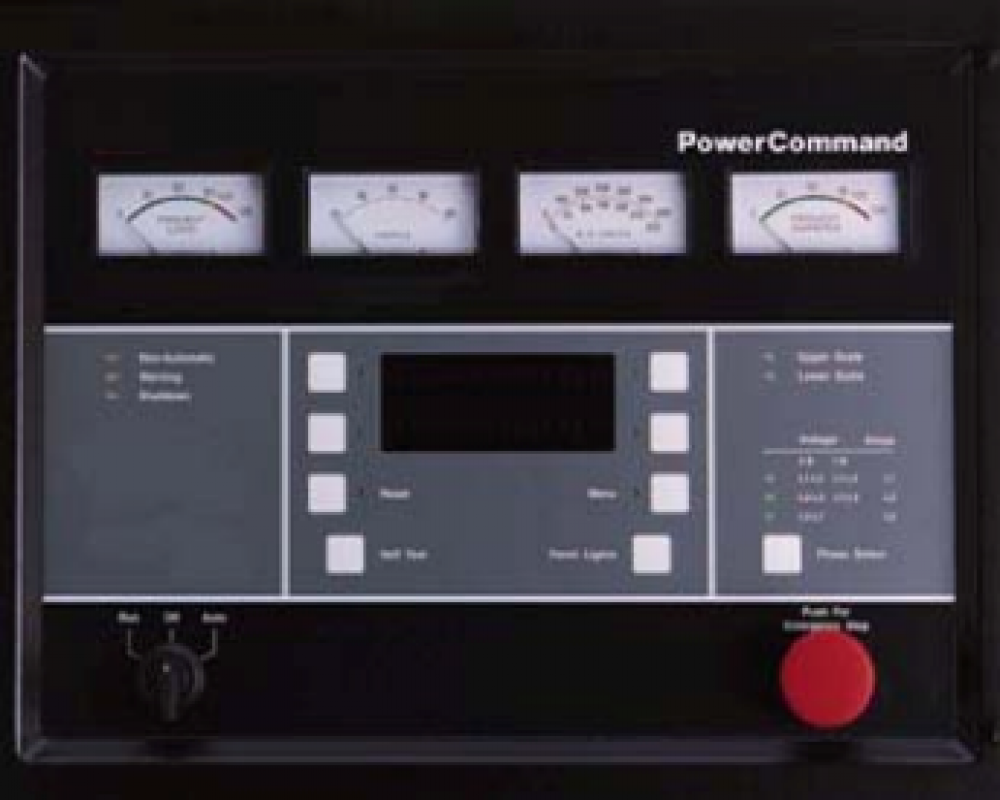

Cummins PowerCommand Control or DEIF Control
AmySentry Protection guards the electrical integrity of the alternator and power
system from the effects of
overcurrent, over/under voltage, under frequency and
overload conditions.
Control components are designed to withstand the vibration levels typical in generator
sets.
Integrated automatic voltage regulator and engine speed governor.
发电机组控制
康明斯PowerCommand控制或DEIF控制
保护交流发电机和电力系统的电气完整性，免受过流、过压/欠压、频率和过载条件的影响
控制部件的设计可以承受发电机组的常规震动
集成自动调压器和发动机转速调节器

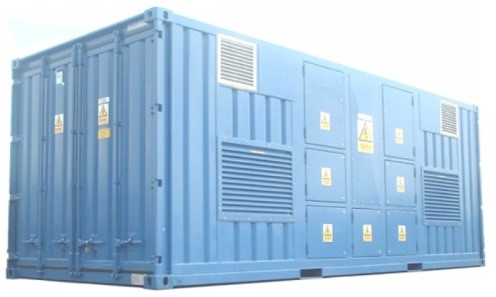

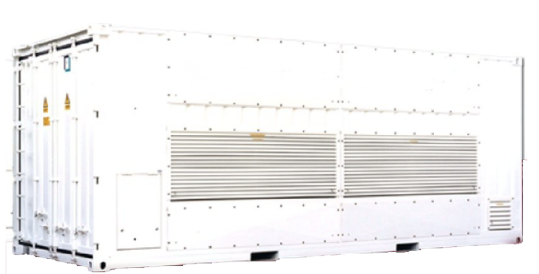

LOADBANK
Air cooled
Resistive and reactive variable power factor control
Purpose-built in ISO standard 20 ft containers for easy handling and transportation
Transient speed instrumentation
Automatic load test program capacity
Remote control and monitoring
Laptop remote operation
Synchronization running by network
Remote diagnostic and data record
负载箱
空气冷却
阻性和感性可变功率因数控制
采用ISO标准20英尺集装箱，便于运输
瞬态变化测试数据和曲线记录
自动负载加载减载程序控制
远程控制和监控
笔记本电脑远程操作
通过网络进行同步
远程诊断和数据记录
TRANSFORMER
Purpose-built for rental application in harsh environment
Manufactured and tested to meet or exceed IEC standards
Multi-tap, multi-voltage for range of common utility voltage from 3.3kV to 138kV, 50Hz or 60Hz
Self contained modules for easy handling and transportation
Oil-cooled
Ventilation for container
Switchgear and built-in protection
变压器
专为恶劣环境下的租赁应用而设计
生产和测试符合或超过IEC标准
多抽头、多电压，适用范围为3.3kV ~ 138kV、50Hz或60Hz
独立模块，便于搬运和运输
油浸式变压器
集装箱通风冷却
内置中压开关柜和电气保护装置

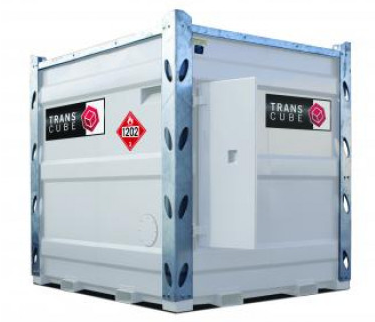

FUEL TANK
Access manholes for inspections and maintenance of inner tank
Empty stacks can be stacked, reducing storage space requirements.
110% Contained. Built-in, weather-proof bund.
Lockable equipment cabinet that secures all ports and fittings as well as captures all spills and drips. secure hose access enables while cabinet is locked.
Capable of efficiently operating up to 3 diesel engines simultaneously.
Capacity 10000L
油柜
设置可对内罐进行检查和维护的人孔
可以对空柜进行堆叠放置，减少对存储空间的需求
可以最大提供110%的容量，预装防风雨设施
油柜具备安全锁，确保所有燃油端口和附件以及暂存的溢油和凝水不被非法获取，当机柜被锁住时，仅允许安全的柴油软管可以进入
可同时向最多3台柴油机供油
容积最大可达10000升

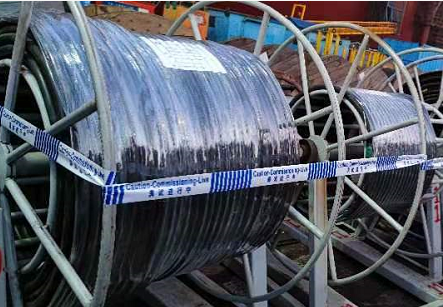

MV CABLE
12/20kV
1*185 or 1*150, Class 5 or Class 2
Conductor stranded copper
Insulation rubber
Screen copper tapes
Outer sheath Polyvinyl chloride (PVC)
Operating Temperature Rating -30°C to +45°C
Minimum installation temperature -15°C
Standard reference IEC 60502-2 as far as for applicable
中压电缆
12/20kV
1*185或1*150，Class 5或Class 2电缆
绞合铜线
绝缘橡胶
屏蔽铜带
外护套聚氯乙烯(PVC)
工作温度-30°C ~ +45°C
最低安装温度-15°C
参考标准IEC 60502-2
LV CABLE
Nominal 0.6/1kV
1*185 or 1*240, Class 5
Conductor stranded copper
Insulation rubber
Screen copper tapes
Outer sheath Polyvinyl chloride (PVC)
Operating Temperature Rating -25°C to +45°C
Minimum installation temperature -15°C
Standard reference IEC 60228 60502-1as far as for applicable
低压电缆
0.6/1 kV
1*185或1*240，Class 5软电缆
绞合铜线
绝缘橡胶
屏蔽铜带
外护套聚氯乙烯(PVC)
工作温度-25°C ~ +45°C
最低安装温度-15°C
参考标准IEC 60228 60502-1

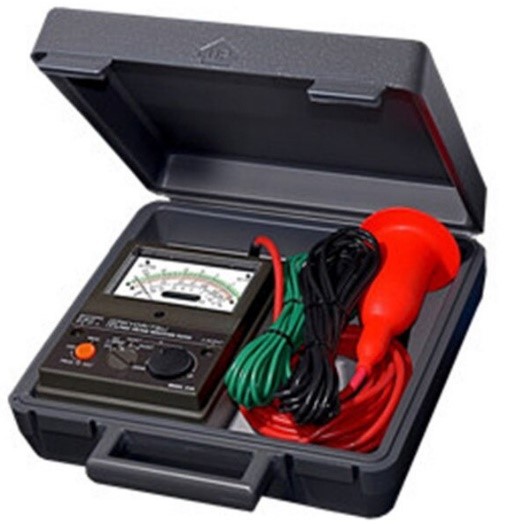

HIGH VOLTAGE INSULATION TESTER
(variable) 1k-10kV*1 – 1000V
7082 (Lead for recorder) * 7083 (Lead for battery charging)
7084 (Earth and guard leads)
9176 (Carrying case [Hard])
Permits a wide range of insulation testing up to 100GΩ at
variable test voltage from 1kV to 10kV.
DC voltage output for recorders.
Output voltage is shown on the digital display.
After tests, automatically discharges the charges stored in the
circuit under test.
高压绝缘测试仪
可调1k-10kV*1 - 1000V
7082(记录仪电缆)* 7083(充电器电缆)
7084(接地线和安全线)
9176(手提箱)
可在1kV至10kV的不同测试电压下进行高至100GΩ的绝缘测试
用于记录仪的直流电压输出
输出电压显示在数字显示器上
测试结束后，自动将存储在被测电路中的电荷放电

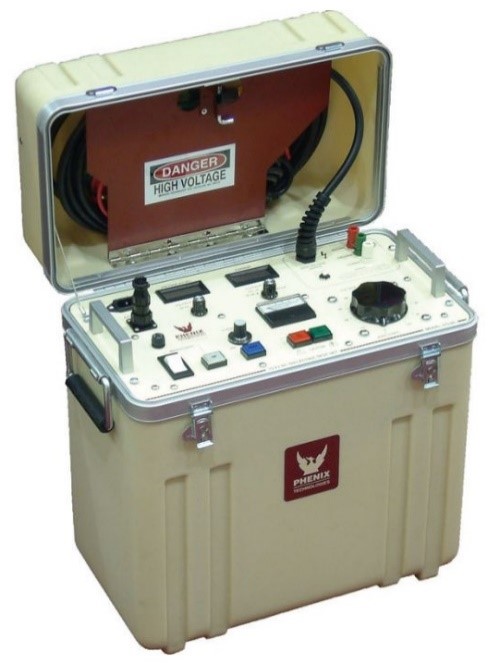

40KV DC DIGITAL HIPOT TESTER
Output voltage is continuously adjustable over entire range
Adjustable overcurrent trip point from 10%-110% of each individual current range
Large, easy to read, high accuracy digital meters
Analog 0-100% of range current meter for visual charge indication
Input Circuit Breaker/Power Switch
Thermal resettable overload
Built in discharge circuit rated at 6 kilojoules (kJ)
Removable line cord
“Zero Start” Interlock
40kV 直流数字耐压测试仪
输出电压在整个范围内连续可调
每个电流范围的过流脱扣值可在10%-110%调节
大屏幕、读数方便、精度高的数显仪表
模拟0-100%量程电流表，可视电流指示
输入空开/电源开关
热复位过载
内置6千焦耳(kJ)放电电路
可拆卸式电缆
“零启动”联锁

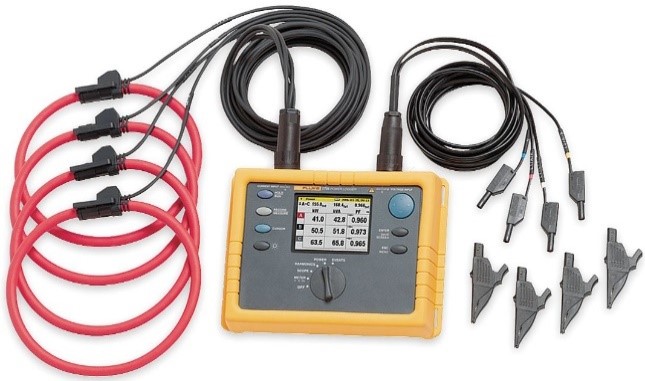

POWER QUALITY ANALYZER
Record power and associated parameters for up to 45 days
Monitor maximum power demand over user-defined averaging periods
Prove the benefit of efficiency improvements with energy consumption tests
Measure harmonic distortion caused by electronic loads
Improve reliability by capturing voltage dips and swells from load switching
Easily confirm instrument setup with color display of waveforms and trends
Measure all three phases and neutral with included 4 flexible current probes
View graphs and generate reports with included Power Log software
电能质量分析仪
记录功率和相关参数长达45天
在用户定义的平均周期内监控最大功率需求
通过能源消耗测试证明效率提高的好处
测量电气负载引起的谐波失真
通过捕捉负载开关的电压变化来提高可靠性
通过彩色波形和曲线趋势显示方便地确认仪器配置信息
用4个柔性电流探头测量所有三个相线和中性线
使用Power Log软件查看图表并生成报告
OUR CUSTOMER
我们的客户
ENERGY COMPAMY能源公司
EPC CONTRACTOR
工程总包公司
SHIPYARD AND FABRICATOR
船舶修造公司
SHIPPING COMPANY
航运公司
BUSINESS AREAS
服务的行业
OIL AND GAS石油天然气
MARINE AND OFFSHORE
船舶与海洋工程
NUCLEAR POWER
核电
SHIPPING
航运
OUR FACILITIES
我们的设施
CONTAINERIZED GENERATOR SET集装箱式柴油发电机组
MOBILIZABLE POWER LOADBANK
可移动式电力负荷站
MV/LV CABLE & TRANSFORMER
中低压电缆和变压器
TEST INSTRUMENTS
检测仪表
